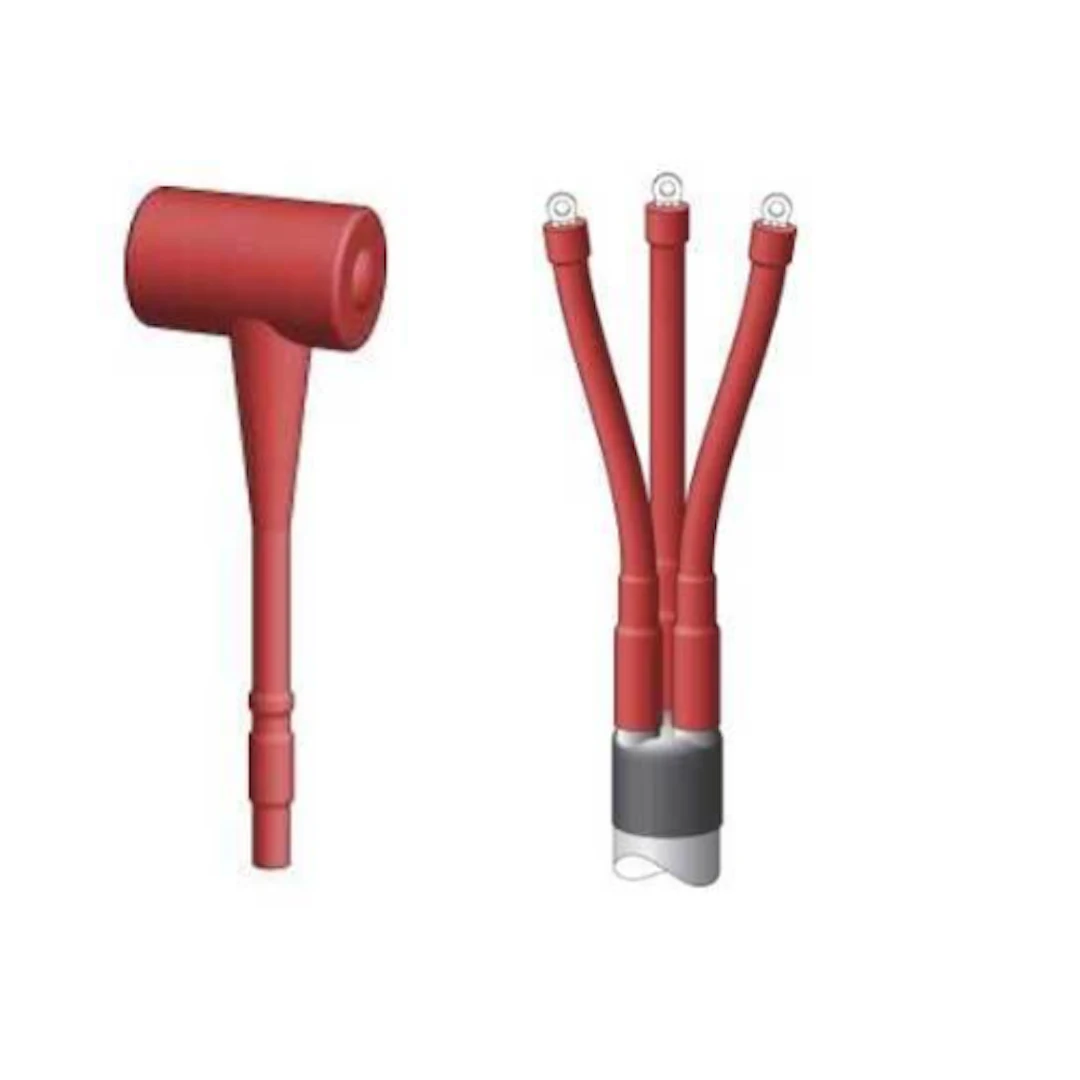

Cable Jointing Kits

11 kV Cable Jointing Kits

Product Specification

  • High durability
  • Perfect finish
  • Less maintenance

Product Description

We are a noteworthy trader and supplier of a superior quality 11 KV Cable Jointing Kit that is widely used all the industries. Procured from the certified vendors of the market, our offered kit is manufactured under the supervision of professionals using the finest quality raw material and advanced technology at our vendor’s well-maintained production unit. Apart from this, the provided kit is well-examined by our quality controllers on diverse quality parameters to deliver a flawless range at patron’s end.

33 kV Cable Jointing Kits

Product Specification

Power/Voltage 33 kV
Number of Cores 2 Core, 3 Core, 4 Core, 3.5 Core
Length 600 mm
Cable Type Y-Cross Linked Polyethyene
Size of Condutor 10-500mm 2

Product Description

In order to cater to the variegated demands of our precious clients, we are offering a wide range of Cable Jointing Kits.

66kV Joints Termination Sealing Ends

66kV straight cable joints, cable terminations and sealing ends are designed in accordance with IEC6084 and with either an aluminium foil laminate or welded metallic sheath on request.

66kV Aluminium Conductor XLPE Insulated Cable Construction

  • Conductor – Solid, Stranded or Miliken aluminium conductors
  • Conductor Screen – Extruded crosslinked semicon
  • Insulation – Crosslinked polyethylene (XLPE)
  • Insulation Screen – Extruded crosslinked semicon
  • Metallic Sheath – Seamless lead alloy
  • Outer Sheath – Polyethylene (Fire Performance Alternative) Graphite outer coating

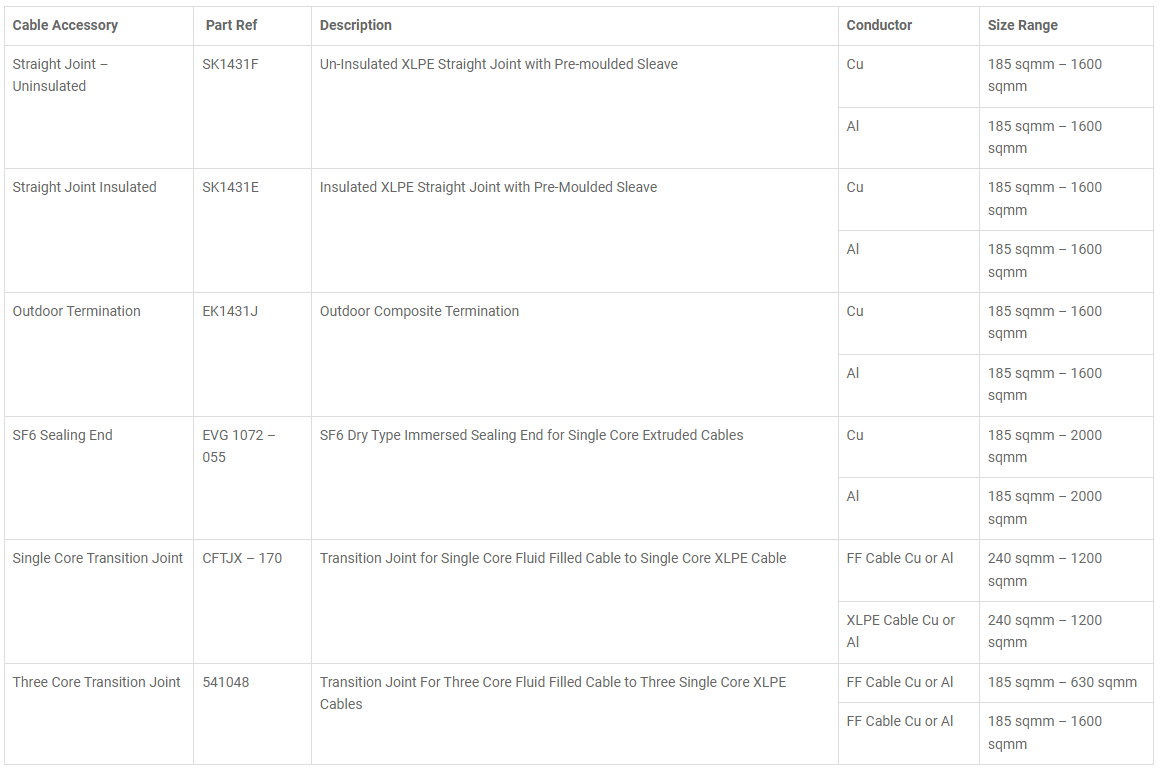

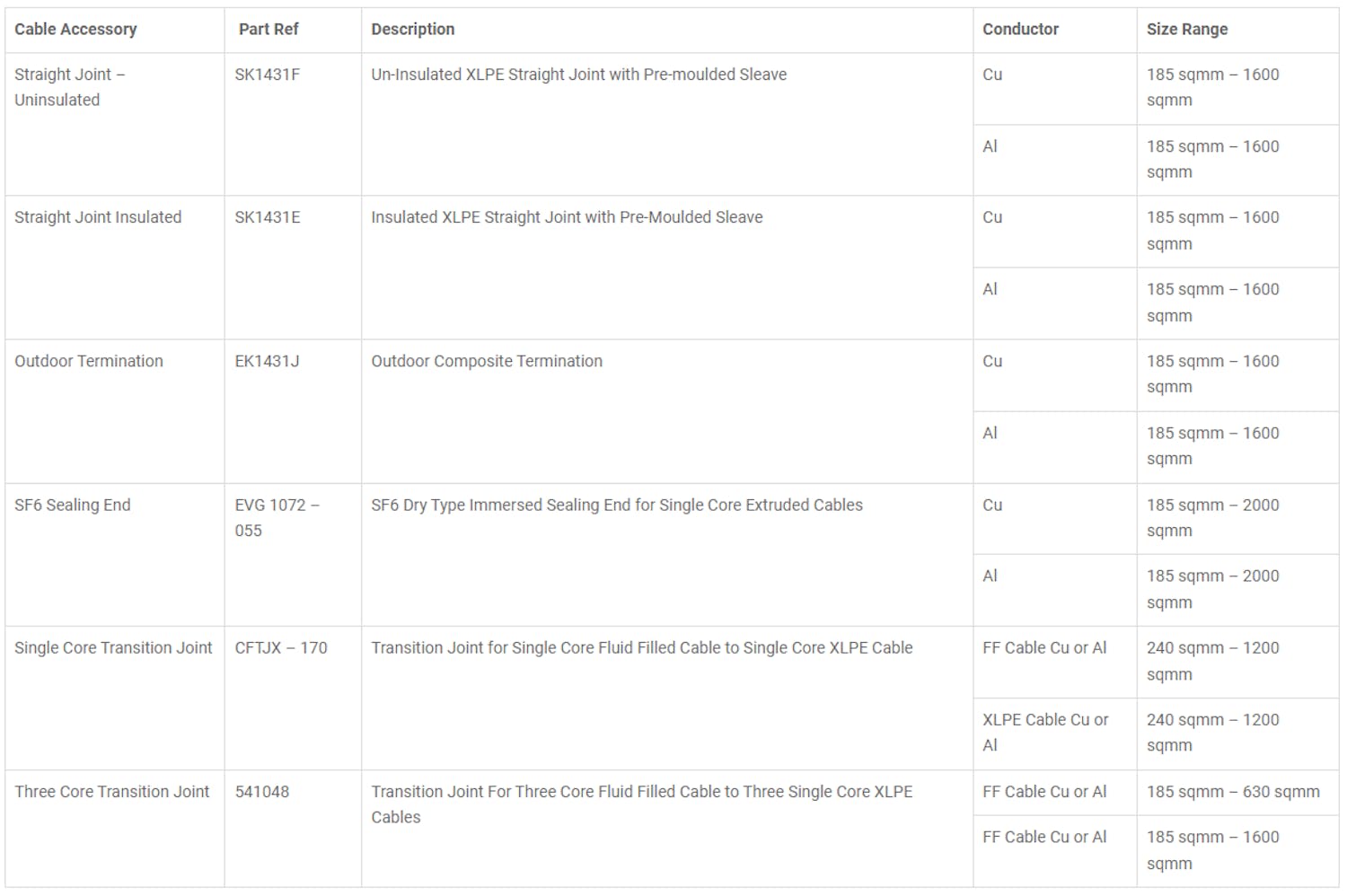

66kV Joints, terminations & Cable Sealing Ends

Product Specification

Cable Accessory  Part Ref Description Conductor Size Range
Straight Joint – Uninsulated SK1431F Un-Insulated XLPE Straight Joint with Pre-moulded Sleave Cu 185 sqmm – 1600 sqmm
Al 185 sqmm – 1600 sqmm
Straight Joint Insulated SK1431E Insulated XLPE Straight Joint with Pre-Moulded Sleave Cu 185 sqmm – 1600 sqmm
Al 185 sqmm – 1600 sqmm
Outdoor Termination EK1431J Outdoor Composite Termination Cu 185 sqmm – 1600 sqmm
Al 185 sqmm – 1600 sqmm
SF6 Sealing End EVG 1072 – 055 SF6 Dry Type Immersed Sealing End for Single Core Extruded Cables Cu 185 sqmm – 2000 sqmm
Al 185 sqmm – 2000 sqmm
Single Core Transition Joint CFTJX – 170 Transition Joint for Single Core Fluid Filled Cable to Single Core XLPE Cable FF Cable Cu or Al 240 sqmm – 1200 sqmm
XLPE Cable Cu or Al 240 sqmm – 1200 sqmm
Three Core Transition Joint 541048 Transition Joint For Three Core Fluid Filled Cable to Three Single Core XLPE Cables FF Cable Cu or Al 185 sqmm – 630 sqmm
FF Cable Cu or Al 185 sqmm – 1600 sqmm

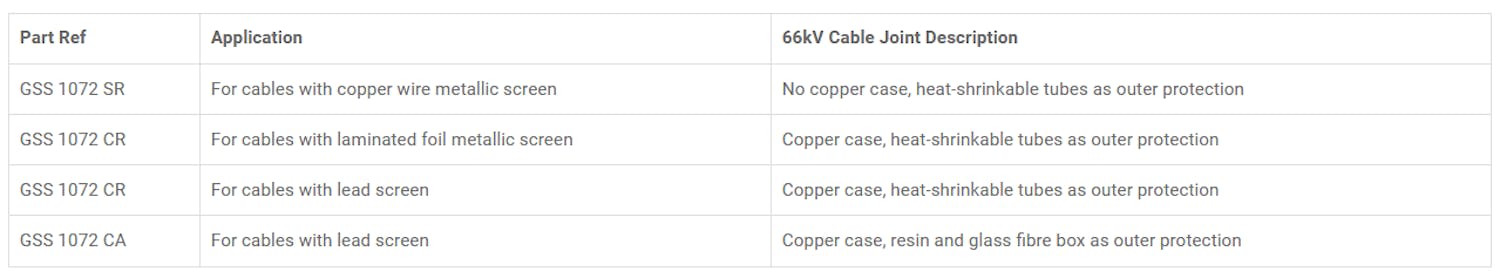

66kV Sensationalized CABLE JOINTS

Part Ref Application 66kV Cable Joint Description
GSS 1072 SR For cables with copper wire metallic screen No copper case, heat-shrinkable tubes as outer protection
GSS 1072 CR For cables with laminated foil metallic screen Copper case, heat-shrinkable tubes as outer protection
GSS 1072 CR For cables with lead screen Copper case, heat-shrinkable tubes as outer protection
GSS 1072 CA For cables with lead screen Copper case, resin and glass fibre box as outer protection

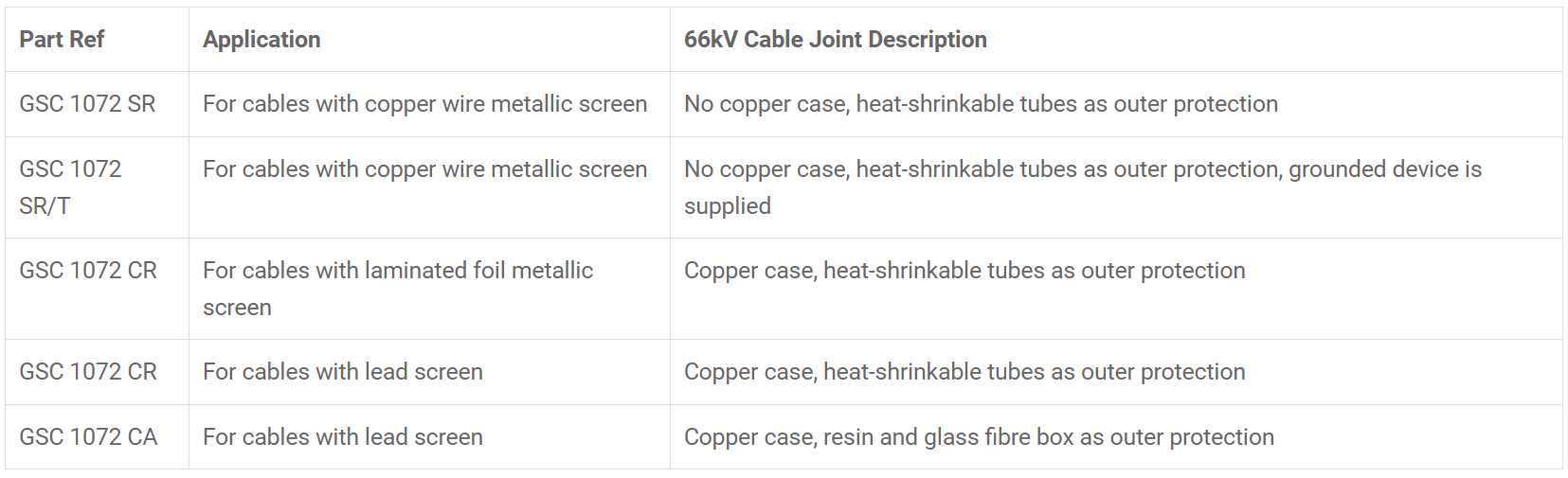

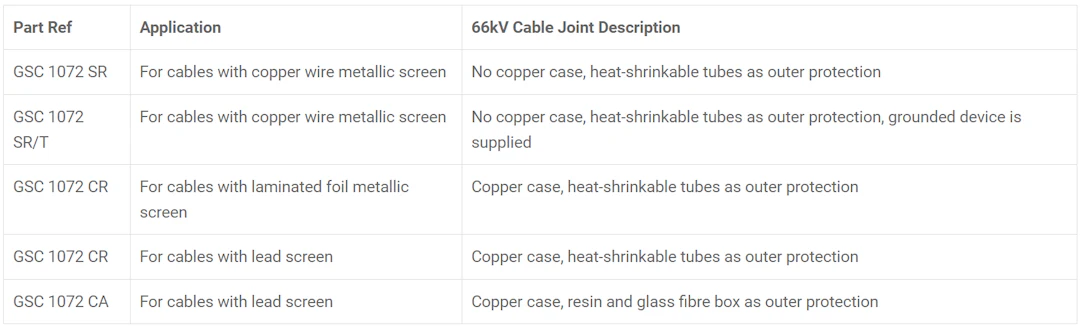

66kV CONTINUOUS CABLE JOINTS

Part Ref Application 66kV Cable Joint Description
GSC 1072 SR For cables with copper wire metallic screen No copper case, heat-shrinkable tubes as outer protection
GSC 1072 SR/T For cables with copper wire metallic screen No copper case, heat-shrinkable tubes as outer protection, grounded device is supplied
GSC 1072 CR For cables with laminated foil metallic screen Copper case, heat-shrinkable tubes as outer protection
GSC 1072 CR For cables with lead screen Copper case, heat-shrinkable tubes as outer protection
GSC 1072 CA For cables with lead screen Copper case, resin and glass fibre box as outer protection

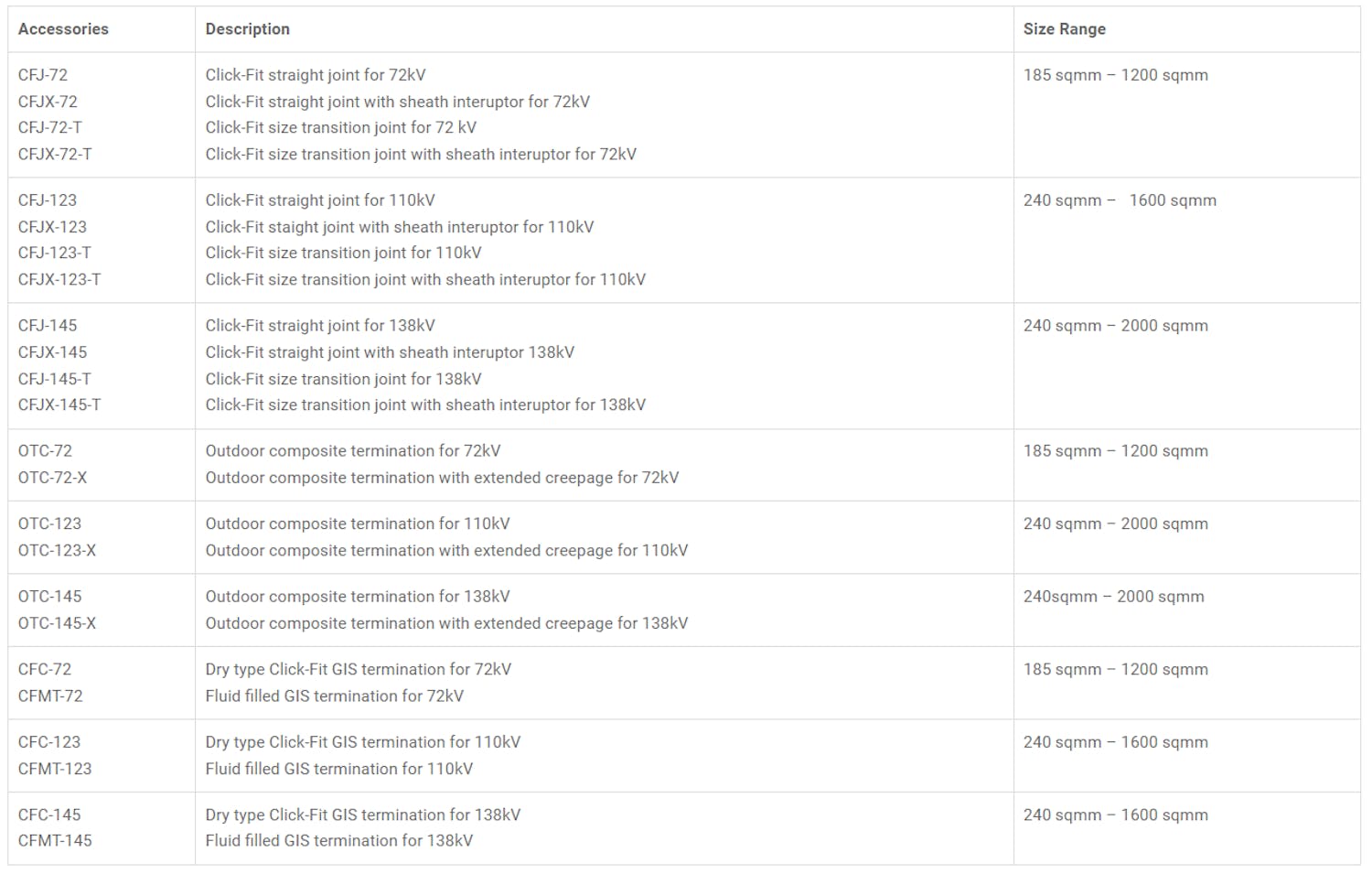

ClickFit Accessories

Accessories  Description Size Range
CFJ-72
CFJX-72
CFJ-72-T
CFJX-72-T
Click-Fit straight joint for 72kV
Click-Fit straight joint with sheath interuptor for 72kV
Click-Fit size transition joint for 72 kV
Click-Fit size transition joint with sheath interuptor for 72kV
185 sqmm – 1200 sqmm
CFJ-123
CFJX-123
CFJ-123-T
CFJX-123-T
Click-Fit straight joint for 110kV
Click-Fit staight joint with sheath interuptor for 110kV
Click-Fit size transition joint for 110kV
Click-Fit size transition joint with sheath interuptor for 110kV
240 sqmm –   1600 sqmm
CFJ-145
CFJX-145
CFJ-145-T
CFJX-145-T
Click-Fit straight joint for 138kV
Click-Fit straight joint with sheath interuptor 138kV
Click-Fit size transition joint for 138kV
Click-Fit size transition joint with sheath interuptor for 138kV
240 sqmm – 2000 sqmm

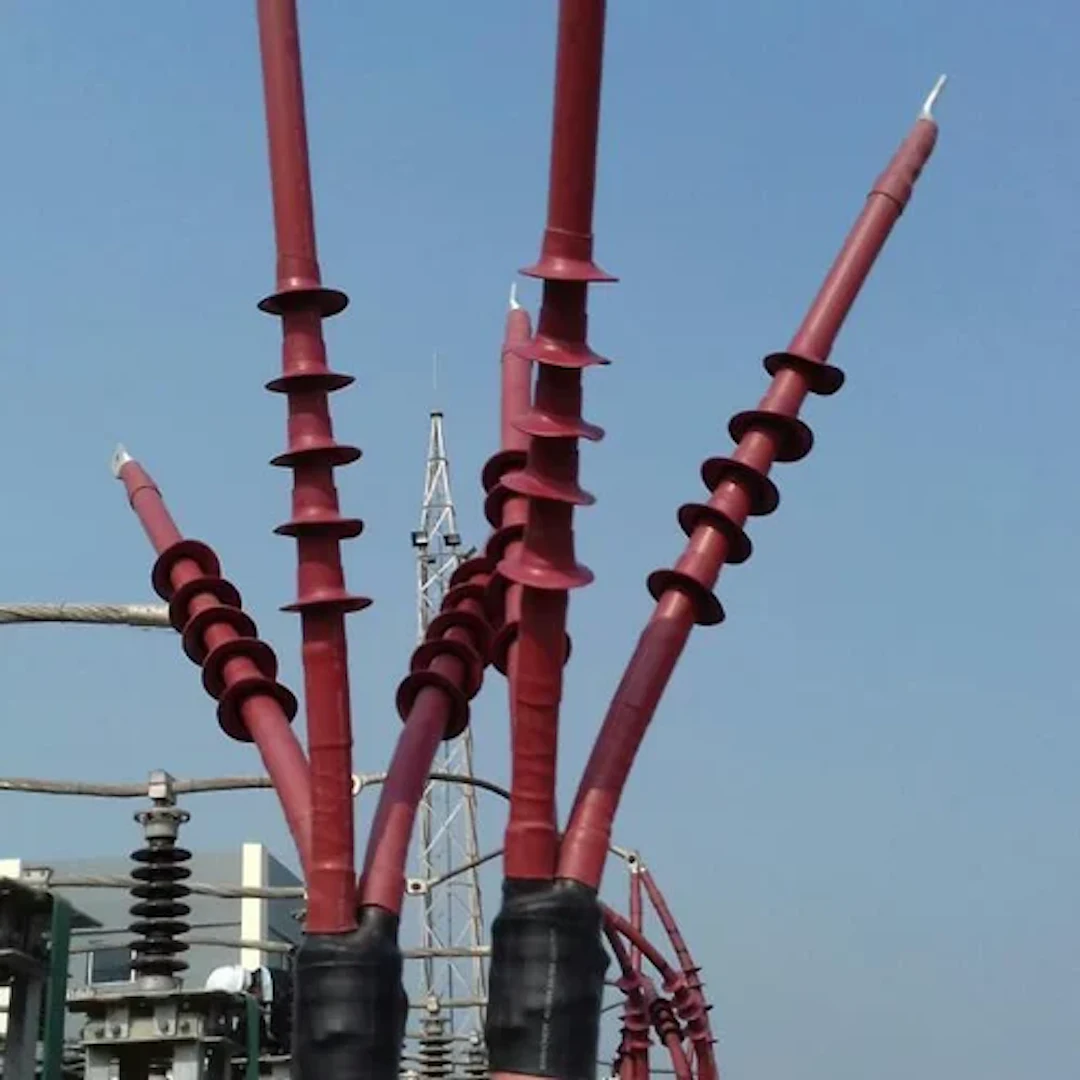

OTC-72
OTC-72-X
Outdoor composite termination for 72kV
Outdoor composite termination with extended creepage for 72kV
185 sqmm – 1200 sqmm
OTC-123
OTC-123-X
Outdoor composite termination for 110kV
Outdoor composite termination with extended creepage for 110kV
240 sqmm – 2000 sqmm
OTC-145
OTC-145-X
Outdoor composite termination for 138kV
Outdoor composite termination with extended creepage for 138kV
240sqmm – 2000 sqmm
CFC-72
CFMT-72
Dry type Click-Fit GIS termination for 72kV
Fluid filled GIS termination for 72kV
185 sqmm – 1200 sqmm
CFC-123
CFMT-123
Dry type Click-Fit GIS termination for 110kV
Fluid filled GIS termination for 110kV
240 sqmm – 1600 sqmm
CFC-145
CFMT-145
Dry type Click-Fit GIS termination for 138kV
Fluid filled GIS termination for 138kV
240 sqmm – 1600 sqmm

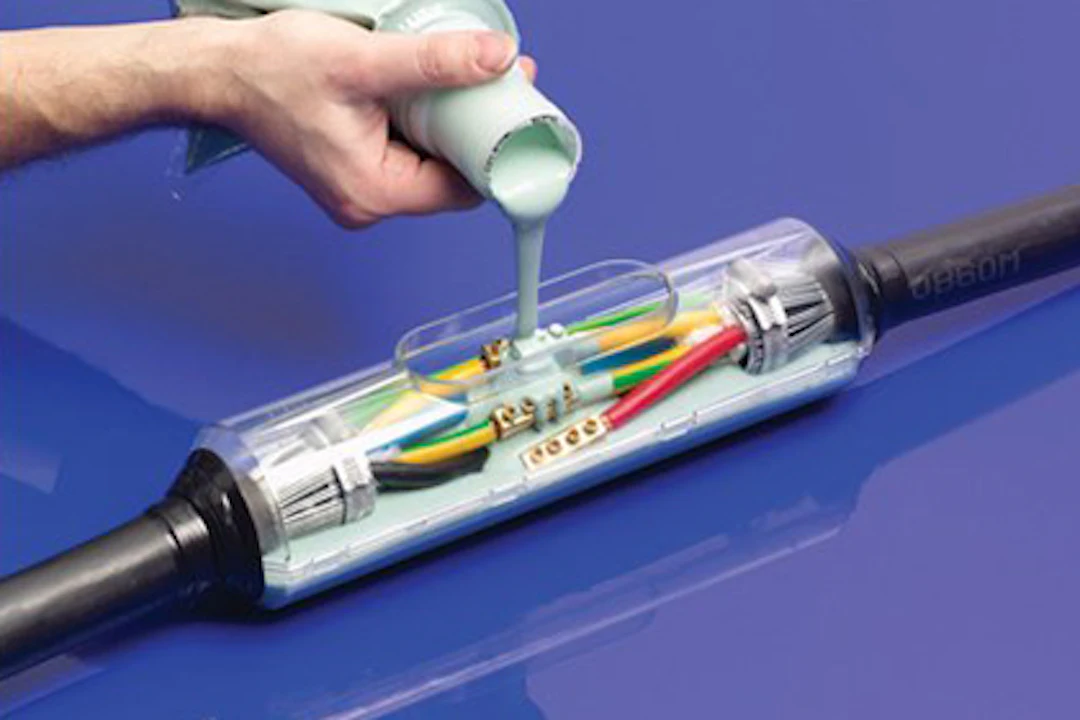

Low Voltage Cable Jointing Kits

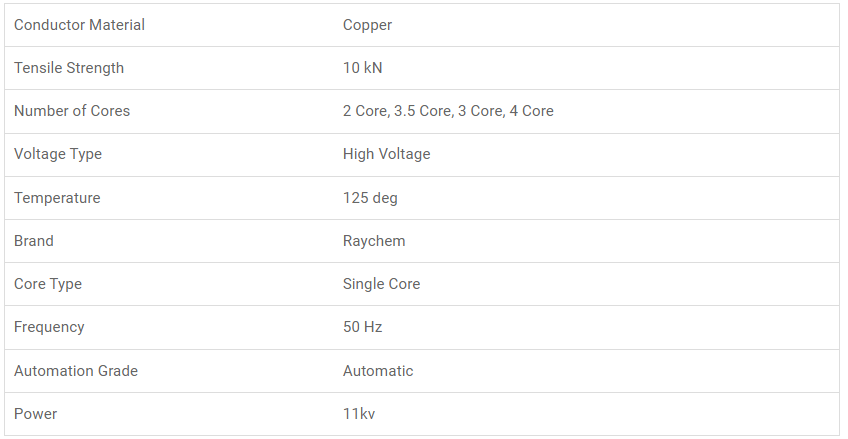

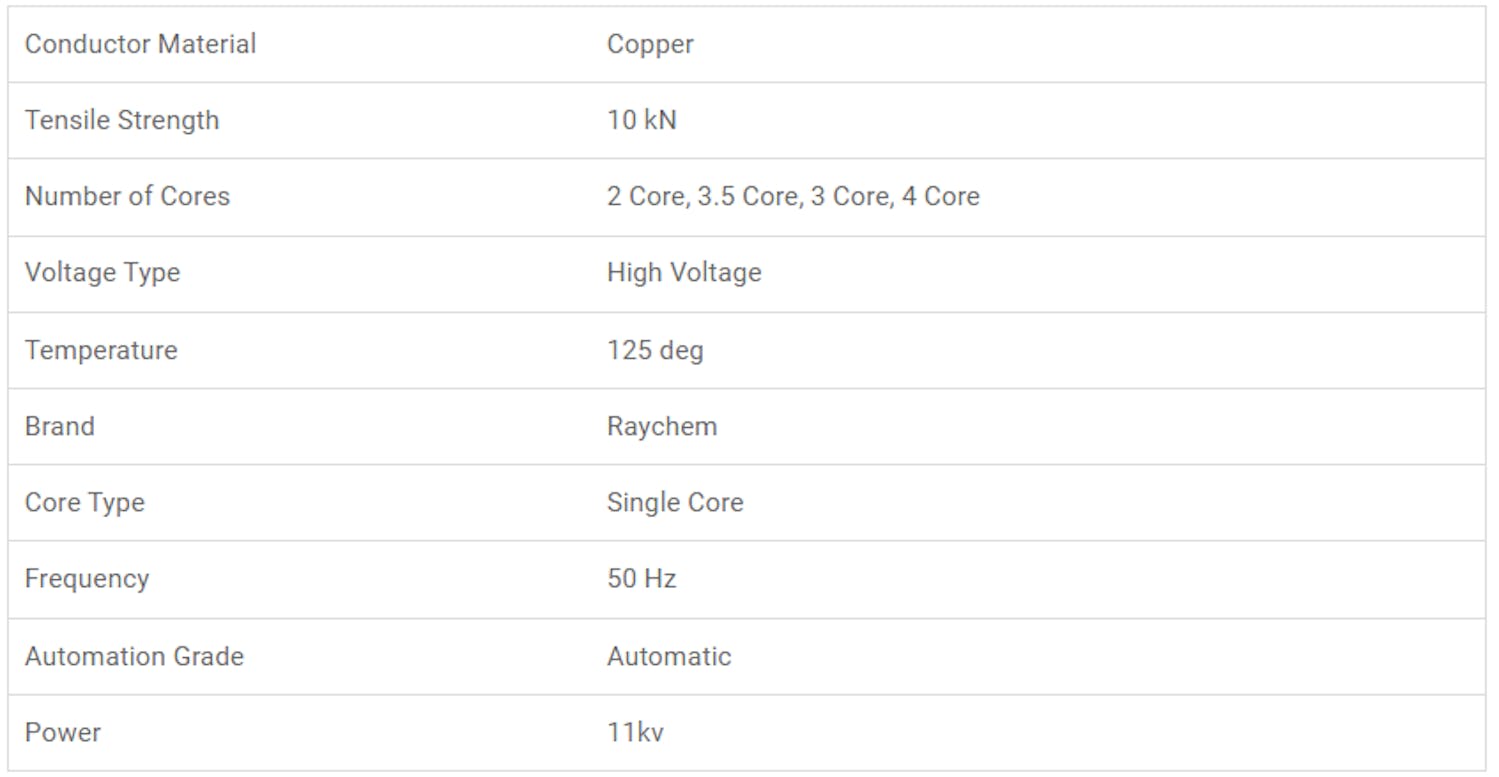

Product Specification

Conductor Material Copper
Tensile Strength 10 kN
Number of Cores 2 Core, 3.5 Core, 3 Core, 4 Core
Voltage Type High Voltage
Temperature 125 deg
Brand Raychem
Core Type Single Core
Frequency 50 Hz
Automation Grade Automatic
Power 11kv

Our company is instrumental in offering premium quality Low Voltage Cable Jointing Kits to our valuable customers. Owing to their impeccable design, smooth finish and sturdy construction, these kits are commonly used in cable joining applications. Offered kits are delivered within the promised time at the customers’ end due to the sincere efforts of our team of logistics professionals.

Features

  • Impeccable design
  • Smooth finish
  • Sturdy construction
