Solar Cable

Features

• Electron beam cross linked compound
• UV, ozone, temperature & hydrolysis resistant
• Flame retardant, low smoke
• Excellent encapsulation
• Very long /service life >25 years.

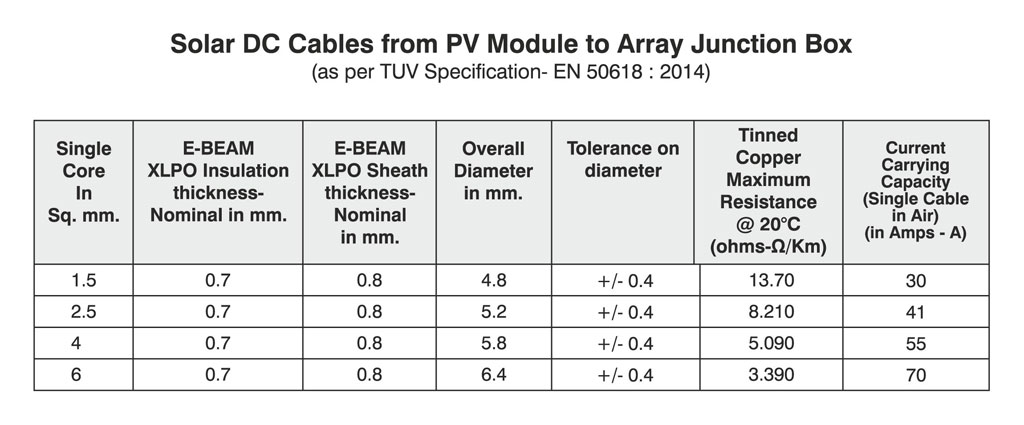

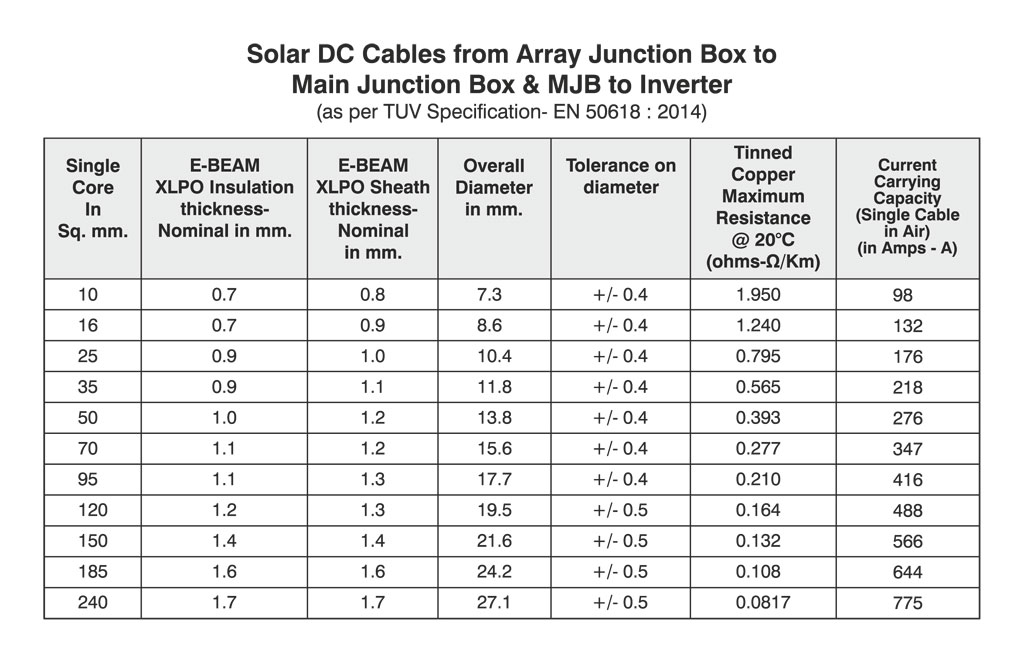

Technical Specification

Construction:

  • Conductor: tinned copper conductor IEC60228, Class5.
  • Insulation/sheath: electron beam cross linked halogen free & flame retardant compound (XLPO).

Electrical:

  • Voltagetest: 6500V as per EN50395.
  • Max permissible operating voltage: DC 1.5Kv (conductor-conductor,non earthed system).
  • Nominal voltage: AC-0.6/1Kv, DC-900/1.5Kv.

Temperature:

  • Ambient Temperature: -40°C to +90°C.
  • Max conductor temperature: 40°C to 120°

Max bending radius:

  • 5 *OD(fixed installation)
  • 15  *OD(occasional moved)

Standards / Material Properties:

  • Fire performance: IEC 60332-1-2
  • Smoke emission: IEC 61034 / EN 50268-2
  • Halogen free: EN 50267-2-1/-2,IEC 60754-2
  • Toxicity: EN 50305, ITC-index<3
  • Ozone Resistant: EN 50396
  • Weathering UV: HD 605/ A1 or DIN 53367
  • Approvals: EN 50618; H1Z2Z2-K
